Faria Kronos 2" Fuel Level Gauge [19001]

SKU: C-54725

Help

If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, withing 24 hours on weekdays.

Customer service

All questions about your order, return and delivery must be sent to our customer service team by e-mail at yourstore@yourdomain.com

Sale & Press

If you are interested in selling our products, need more information about our brand or wish to make a collaboration, please contact us at press@yourdomain.com

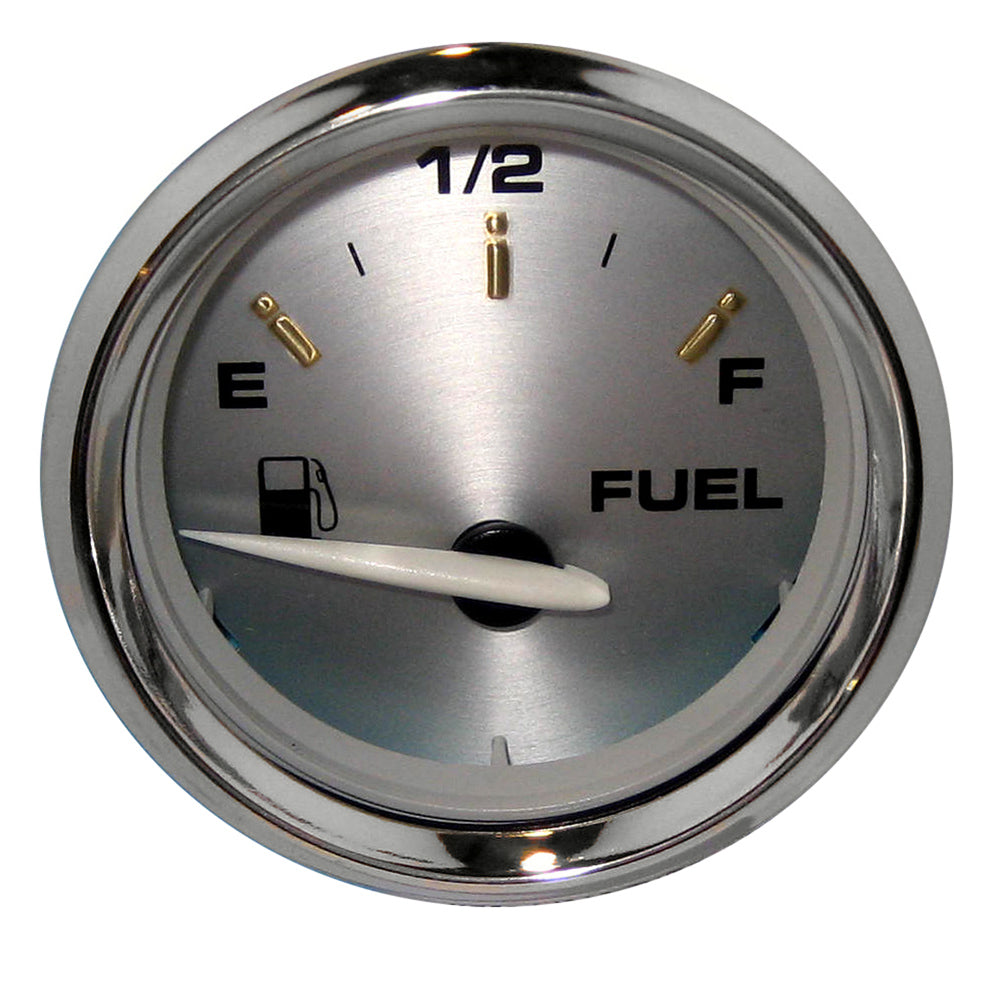

Kronos 2" Fuel Level Gauge (E-1/2-F)

Polished Stainless Steel bezel, flat glass lens, perimeter lighted spun aluminum dial with Gold and Black graphics. Gold increments and Logo on dial are Embossed.  All instruments include two piece Newport pointer with White hub.

Fuel Level gauge operates by sending a low amperage current through the gauges's meter to ground via a sending unit with variable resistance. The resistance of the sending units increase or decrease with the changes in pressure, temperature, etc...

As the sender's resistance varies, the amount of current allowed to flow through it to ground changes and the meter deflects, showing the level of fuel.

2" - Hole Size: 2.0625" (53mm)

Specifications:

  • Flat Scratch Resistant Lens
  • Polished Stainless Steel bezel
  • LED Illuminating around the Perimeter of the Dial
  • Newport style White Pointer

Factory P/N GP7683

*Sold as an Individual

**Gauge Cover not Included

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

  • Gauge Type: Fuel Level
  • Series: Kronos
  • Voltage - Input Range (Volts): 12/24 V
  • Gauge Size: 2"
  • Box Set: No
  • Box Dimensions: 4"H x 4"W x 5"L WT: 0.3 lbs
  • UPC: 759266190016

Quick Guide (pdf)
