4180 Backlit Push Button Switch OFF/ON - 15A

Features:

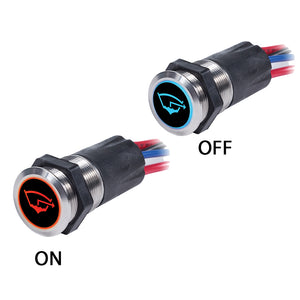

  • Backlit button is blue when OFF and red when ON
  • Five ICON labels included: Accessory, Lights, Anchor Light, Running Light, and Bilge Pump
  • Additional 50 ICON label kit sold separately

Specifications:

  • Action: OFF-ON
  • Amperage: 15A @ 12V DC
  • Nominal Voltage: 12V DC
  • Maximum Voltage: 15V DC
  • Maximum LED Operating Current: 20mA
  • Switching Cycles: 10,000
  • Temperature Range: -20°C to 55°C
  • Termination: 3" - Bare Wire Pigtail
  • Wire Size: Black & Blue Wires 18 AWG / Red & Red/White Wires 14AWG

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • Color: Stainless
  • Action: On/Off
  • Box Dimensions: 2"H x 3"W x 9"L WT: 0.1 lbs
  • UPC: 632085041809

4180 Backlit Push Button Switch OFF/ON - 15A

Features:

  • Backlit button is blue when OFF and red when ON
  • Five ICON labels included: Accessory, Lights, Anchor Light, Running Light, and Bilge Pump
  • Additional 50 ICON label kit sold separately

Specifications:

  • Action: OFF-ON
  • Amperage: 15A @ 12V DC
  • Nominal Voltage: 12V DC
  • Maximum Voltage: 15V DC
  • Maximum LED Operating Current: 20mA
  • Switching Cycles: 10,000
  • Temperature Range: -20°C to 55°C
  • Termination: 3" - Bare Wire Pigtail
  • Wire Size: Black & Blue Wires 18 AWG / Red & Red/White Wires 14AWG

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • Color: Stainless
  • Action: On/Off
  • Box Dimensions: 2"H x 3"W x 9"L WT: 0.1 lbs
  • UPC: 632085041809
