Blue Sea 1464 12 Position Switch CLB + Meter Square [1464]
Blue Sea Systems

Blue Sea 1464 12 Position Switch CLB + Meter Square [1464]

SKU: C-57225 In stock
Regular price
Quantity:

Help

If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, withing 24 hours on weekdays.

Customer service

All questions about your order, return and delivery must be sent to our customer service team by e-mail at yourstore@yourdomain.com

Sale & Press

If you are interested in selling our products, need more information about our brand or wish to make a collaboration, please contact us at press@yourdomain.com

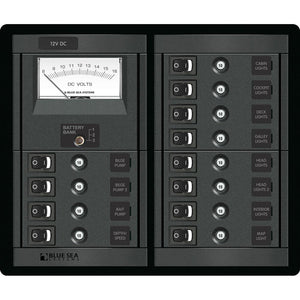

12 Position Switch CLB + Meter Square

Features:

  • Available with voltmeters and ammeters
  • Panels with meters include a toggle switch to monitor voltage on up to three battery banks
  • Includes 4205-Square Format Label Set


Specifications:
  • Positions:t12
  • Nominal Voltage:t12V DC
  • Maximum Amperage*:t120A
  • Height:t7.75" (196.85mm)
  • Width:t9.25" (234.95mm)
  • Depth:t3.50" (88.9mm)
  • Weight:t4.29lb (1.95kg)


* Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application.

Includes:
(12) - 7054 - Push Button Reset Only Quick Connect Circuit Breaker - 10 Amps
(12) - 7480 - Rocker Switch SPST - ON-OFF
(1) - 4205 - Basic DC Label Kit - 30 Black Square Labels [LABEL]
(1) - 8003 - DC Analog Voltmeter - 8 to 16V DC (Meter)

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • AC/DC: DC
  • Box Dimensions: 6"H x 9"W x 13"L WT: 3.65 lbs
  • UPC: 632085014643

Quick Guide (pdf)
Owner's Manual (pdf)
