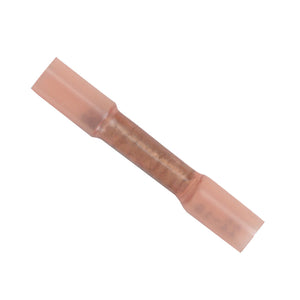

Ancor 22-18 Heatshrink Butt Connectors - 3-Pack [309003]
Ancor

Ancor 22-18 Heatshrink Butt Connectors - 3-Pack [309003]

SKU: C-55425 In stock
Regular price
Quantity:

Help

If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, withing 24 hours on weekdays.

Customer service

All questions about your order, return and delivery must be sent to our customer service team by e-mail at yourstore@yourdomain.com

Sale & Press

If you are interested in selling our products, need more information about our brand or wish to make a collaboration, please contact us at press@yourdomain.com

22-18 Heatshrink Butt Connetors - 3-Pack

Guage Size: 22-18
Quantity: 3

Product Features:

  • Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC.
  • Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief.
  • Nylon insulator, preferred by experts, for Marine Grade resistance to sunlight, water, oil, chemicals, vibration and cut-through damage.
  • UL Listed and CSA Recognized
  • Highest shrink ratio - shrinks to 1/3 original size.
  • Shrinks at 257 deg. F/125 deg. C.
  • Operating temperature range 40 deg. C to 110 deg. C.
  • ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing
  • Shrinks to form a water tight seal and the ultimate vibration and strain relief.
  • Tinned for corrosion resistance.
  • Pure copper for maximum current flow.
  • Brazed seam for maximum strength.
  • Wire range: 22-18
  • mm: 0.3 - 0.8

    WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

    Specifications:

    • Gauge: 22-18 AWG
    • Type: Butt Connectors
    • Package Qty: 3
    • Heat Shrink: Yes
    • Box Dimensions: 1"H x 1"W x 1"L WT: 0.1 lbs
    • UPC: 091887307863

    Quick Guide (pdf)
